Microfocus transmission with separate voltage generator

High-resolution X-ray source for larger workpieces

Benefits

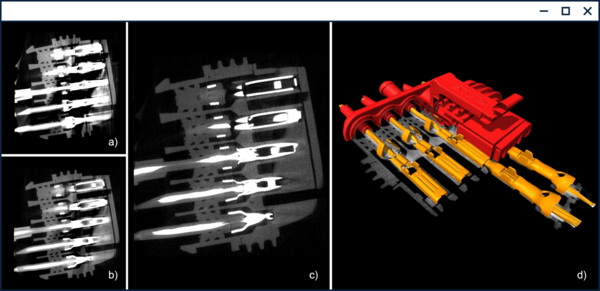

By using a high power transmission target, these sources offer focal spot sizes of a few microns even at high powers. This allows up to five times higher measuring speed compared to sources with reflection target. Due to the high acceleration voltages of up to 300 kV, even dense and larger workpieces or assemblies can be measured with high resolution in the shortest possible time.

The open design means that consumable parts of the source can be replaced as required, giving an unlimited lifetime
The power of up to 80 W, together with the software function OnTheFly CT, results in even shorter measuring times with a resolution of a few micrometres
Long-life components ensure high availability even in multi-shift operation

Technical Data

up to 300 kV

up to 80 W
