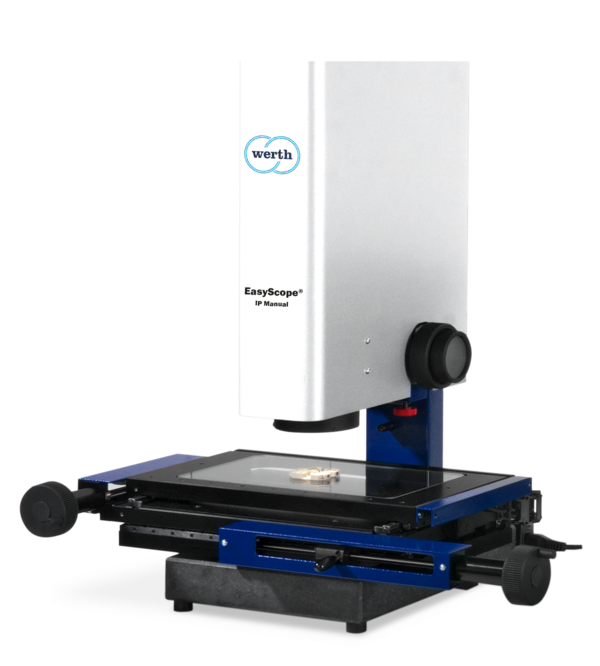

EasyScope® IP Manual

Manual 3D coordinate measuring machine

Benefits

The EasyScope® machine series of instruments is now available in three versions, all offering excellent value for money. Automatic image processing ensures high process stability even for challenging measurement tasks and guarantees measurement results that are independent of the operator. All EasyScope® machines are fitted with low-distortion telecentric zoom lenses, ensuring that the specification applies across the entire field of view.

Optoelectronic zoom for quickly zooming in on the smallest details or switching to the overview image with a single mouse click
Zooming and lighting control within the programme sequences take place automatically
Automatic recognition of measured geometric elements with Werth AutoElement
Navigation to the measurement positions stored in program sequences
High flexibility thanks to 8-segment darkfield incident light and transmitted light illumination
Brightfield incident light can be integrated into the optical path
Specification following VDI 2617

Technical Data

3D image processing measuring machine

X = 200 mm, Y = 100 mm, Z = 200 mm

Permissible length measurement error up to 2.5 µm
