What are individual colour scales suitable for?

What are individual colour scales suitable for?

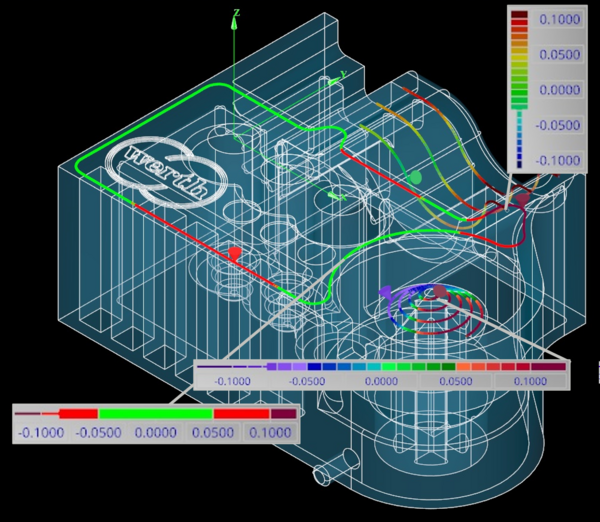

Individual colour scales make it easier to identify tolerance violations for different geometrical characteristics. The colour distribution diagram can be used to easily assess the size of systematic and random deviations.

For example, for form errors with different tolerances, the type of deviation display can be flexibly adjusted by the user. For each local deviation, the corresponding tolerance band and the selected colour scale are displayed below the dimension flag. This allows different tolerances on the workpiece to be visualised at a glance. Deviations can be displayed both in millimetres and as a percentage deviation from tolerance limits.

What are individual colour scales suitable for?
