TomoScope® XS Plus 200

Industrial computed tomography (CT) with higher voltage for measurements of medium-sized workpieces

TomoScope® XS Plus 200
Benefits

Measurements with X-ray tomography for shopfloor and measuring room

The TomoScope® XS Plus 200 (utility model) has a unique ratio of small size and weight to large measuring volume and enables the measurement of larger workpieces or small objects with high resolution or reduced measuring time. Complete workpiece volumes with almost any adjustable resolution in all coordinate axes (up to 60 billion voxels) are available as measurement results. For example, connectors, sensor assemblies, joint implants and mobile phone lenses can be measured with 200 kV X-ray voltage.

Other benefits

Other benefits

  • Thanks to the transmission tube – for the first time in monoblock design –, a small focal spot is achieved even at high tube power, so that measurements can be performed 5 times faster compared to conventional CT machines with high resolution
  • The X-ray source combines the benefits of closed and open microfocus X-ray tubes
  • Unlimited lifetime and low downtime with maintenance cycle of one year like conventional coordinate measuring machines
  • Local subvoxeling to reduce probing error
  • OnTheFly Tomography and real-time reconstruction enable fast measurements

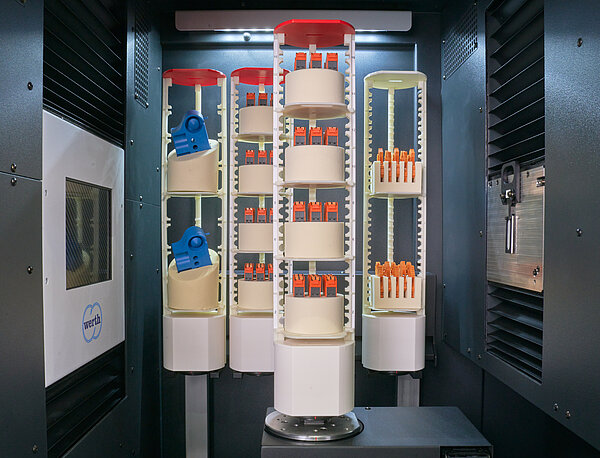

  • Short measurement times of just a few seconds thanks to multi-object measurement
  • Corresponds in design to a full protection device according to the Radiation Protection Ordinance
  • Standard-compliant specification and calibration according to VDI 2617, optionally with DAkkS certificate
Technical Data
Technical Data

Design

3D coordinate measuring machine with computed tomography sensors

Measuring range

Max. Workpiece dimensions D = 289 mm / L = 456 mm (depending on the aspect ratio of the workpieces)

Accuracy

Permissible probing error up to 4.5 µm

Sensors and Accessories
Filter

Further equipment for TomoScope® XS Plus 200

Werth computed tomography CT
Sensor
Werth computed tomography CT
Rotary axis
Accessories
Rotary axis
Workpiece changing system
Accessories
Workpiece changing system
CNC filter changer
Accessories
CNC filter changer
Slit diaphragm
Accessories
Slit diaphragm
Longlife target
Accessories
Longlife target
Longlife filament
Accessories
Longlife filament
Software - The universal measurement software for coordinate measuring machines with optics, probe, computed tomography and multi-sensor systems
Software

The universal measurement software for coordinate measuring machines with optics, probe, computed tomography and multi-sensor systems

The operation of machines with a wide variety of sensors, as well as the evaluation of volume data and point clouds ...
learn more

Service - Comprehensive service around the coordinate measuring machine
Service

Comprehensive service around the coordinate measuring machine

Services from initial commissioning, training and maintenance to retrofitting ...
learn more

Applications

Workpiece examples TomoScope® XS Plus 200
