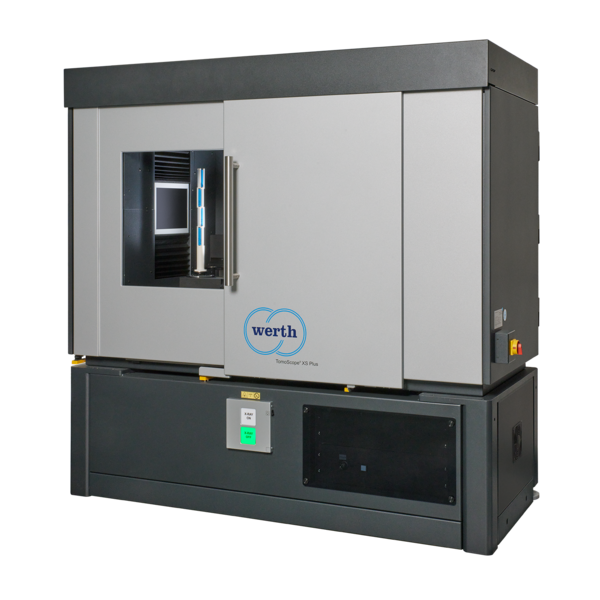

TomoScope® XS Plus 230

Industrial computed tomography (CT) with high voltage and power for measurements of medium-sized workpieces

Benefits

The TomoScope® XS Plus (utility model) has a unique ratio of small size and weight to a large measuring volume and enables the measurement of larger workpieces or It enables the measurement of larger workpieces or smaller objects with high resolution or reduced measuring time at the price level of conventional multisensor coordinate measuring machines. Complete workpiece volumes with almost any adjustable resolution in all coordinate axes (up to 60 billion voxels) are available as measurement results. With 230 kV X-ray voltage, prismatic battery cells and steel implants for shoulders or jaws, for example, can be measured.

Due to the transmission tube – for the first time in monoblock design with this voltage – a small focal spot is achieved even at high tube power, so that measurements can be performed 5 times faster compared to conventional CT machines with high resolution
The X-ray source combines the benefits of closed and open microfocus X-ray tubes
Most powerful transmission source on the market
Unlimited service life and low downtime with a maintenance cycle of one year as with conventional coordinate measuring machines
OnTheFly Tomography and reconstruction in real time enable fast measurements
Short measurement times of just a few seconds thanks to multi-object measurement
Traceability of measurement results through standardised measurement software from radiographic image to volume and measurement point cloud to optional mould correction
Full-protection device design according to radiation protection regulations
Standard-compliant specification and calibration according to VDI 2617, optionally with DAkkS certificate
Can be fully automated and integrated thanks to robot loading and interfaces to most software solutions
